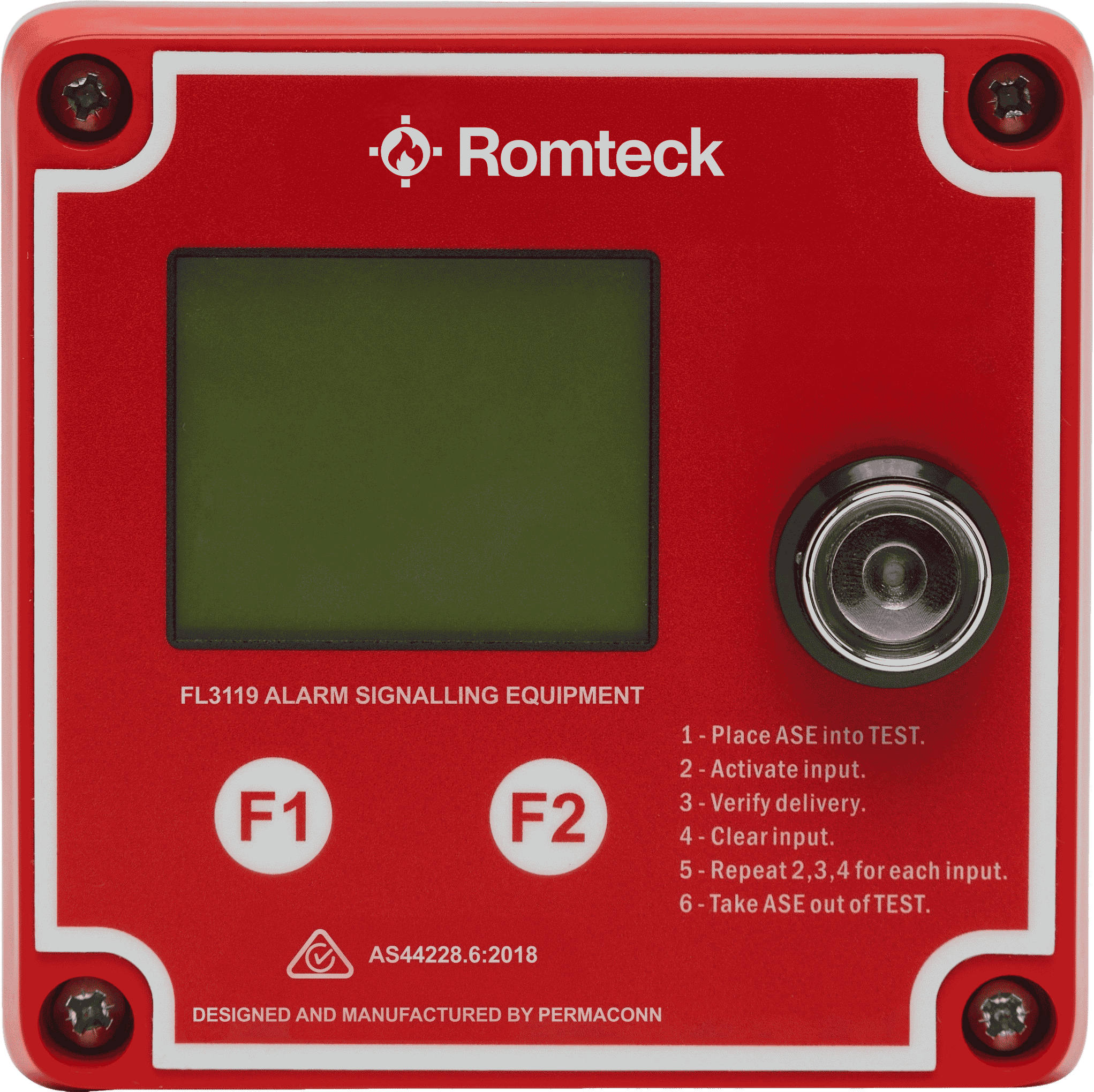

The dual 4G SIM signalling equipment is your go-to for secure and reliable alarm, fault, isolation and power signal reporting from fire systems. Together with 24/7 support and monitoring solutions, it delivers unrivalled safety and compliance – which is why it's trusted by industry leaders.
Dual Redundancy
4G Dual SIM switching to LAN if paths are unavailable. If one communication path is unavailable, all alarms can still be transmitted via a completely separate and independent network. Delivers 99.95% uptime. Device uptime is when monitored by Romteck.
Fully compliant
CSIRO certified for optimum compliance.
Easy to install
Fast installation and easily integrates with existing fire panels. The commissioning is carried out by a Romteck technician with a swift turnaround on new connections.
Networking options
Multiple ASEs can be networked to share a single cellular connection.
Alarm testing supported
End-to-end fire alarm testing using live feed QR code. Large backlit LED screen is easy to use and will help avoid false alarms during test modes.
Remote isolation functionality
Available via our 24/7 monitoring centre.
Customisable notifications
Options include SMS, email and voice call.
Dimension:
110 mm (W) x 110 mm (H) x 71 mm (D)
Weight:
350g
Power Feed Voltage (at ASE):
8-35 Vdc - polarity sensitive
Regulated Circuit Voltage:
3.3 V nominal
Reset Voltage Detector:
3.0 V
Typical Current Drain:
12V operation WIP-WIP - 120 mA24V operation WIP-WIP - 62 mA
Temperature Range:
-10 deg C to +50 deg C
Humidity:
10% to 95% non-condensing
Open Collector Outputs Max Voltage:
30 Vdc t Max current - 100mA2
