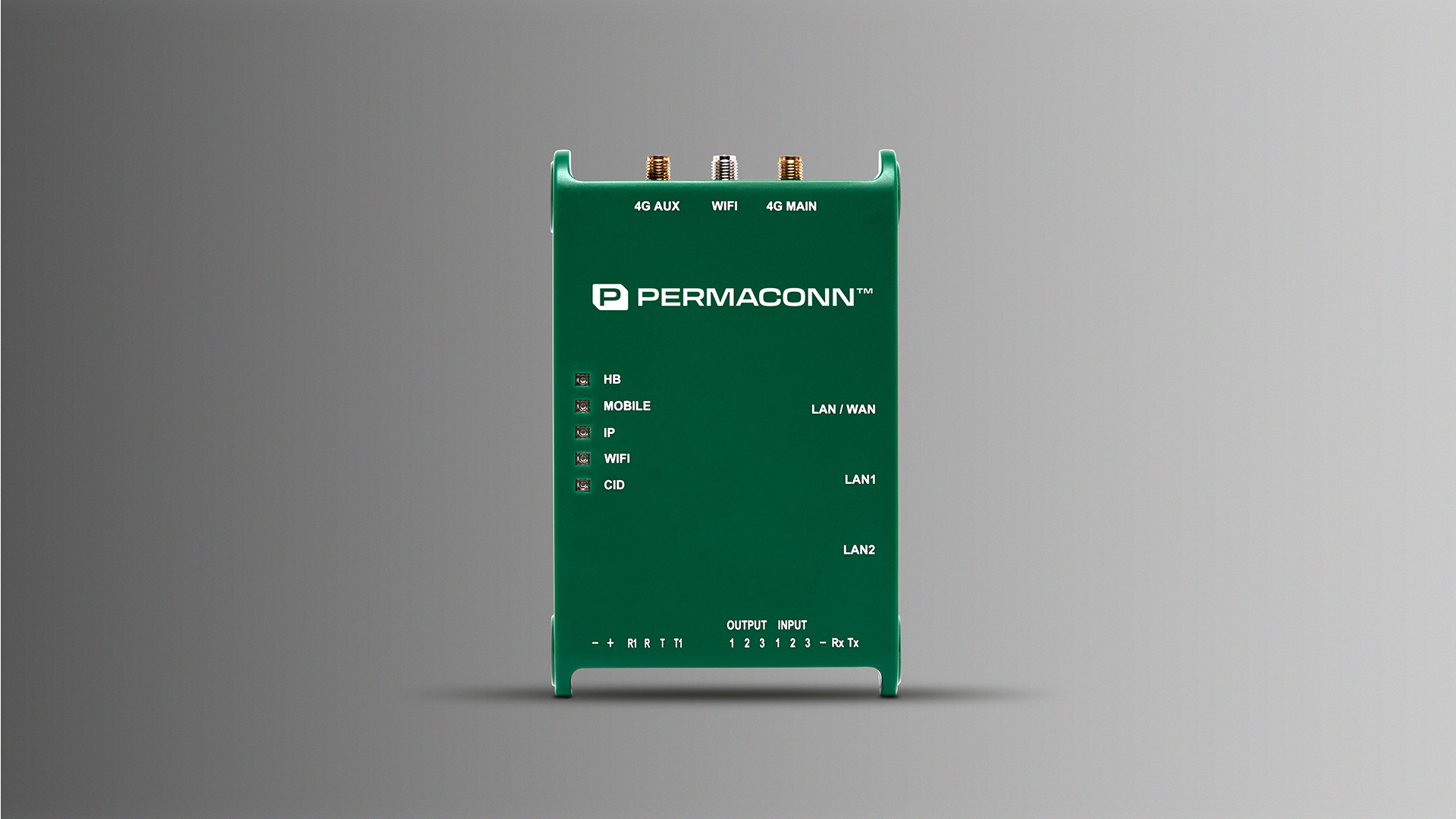

PM 54 4G LTE

Dual SIM 4G

Next generation smart communicator with high-speed internet router and Wi-Fi hotspot.

Key Features

  • Industry First:Alarm, router and hotspot features work simultaneously and can easily be powered from the alarm panel
  • Secure, High Speed 4G:Connect any internet-ready device and view high definition CCTV in real-time
  • Enhanced Connectivity:Extend your clients’ networks and provide a 4G fall-back if their primary IP connection fails
  • Easy to Use:Plug and play install with remote configuration over 4G/IP using Atlas
  • Upload / Download:Remote alarm panel programming (Inc. Bosch 2000 / 3000)

Specifications

4G LTE-FDD:
Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700)
Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL)
3G HSPD+:
Frequency: B1(2100) B5(850) B8(900)
Bandwidth: Max 21Mbps (DL) Max 5.76Mbps (UL)
Antenna:
2 antennas for Cellular (MIMO) + 1 for Wi-Fi
WIFI Capability:
Supports: IEEE 802.11b/g/n
Frequency: 2.4GHz
Ethernet Specs:
Ports: 3 x RJ-45 port
Physical layer: 10/100Base-T
Data rate: 10/100 Mbps
Interface: Auto MDI/MDIX
Routing/Failover:
IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; DHCP; DNS Client and Server
Failover:
Automatic failover/failback to second cellular SIM, Wi-Fi or Ethernet.
IP/Wi-Fi to SIM A and finally SIM B.
Management:
Remote configuration via Atlas web portal
Data Modem:
2400 baud modem for alarm panel remote upload / download
Serial Port:
High Speed RS232 interface for serial connection to alarm and access control panels
Auxiliary Input:
3 x 24Hr inputs state change detected every second EOL 3.3K
Auxiliary Output:
3 x Open Collector outputs @ 50mA (max).
Function control using Atlas web portal and/or Pocket Secure app
Dimensions:
110mm (h) x 25mm (d) x 80mm (w)
Weight:
180g
Power:
10 to 15V DC
Consumption:
Idle 0.12A @13.8V DC
Transmitting:
0.35A @13.8V DC
